PCB for MCB (1)

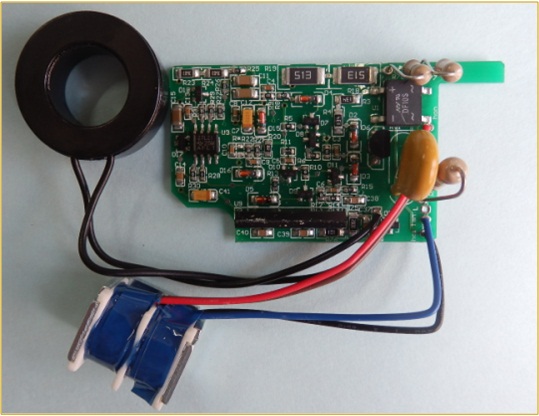

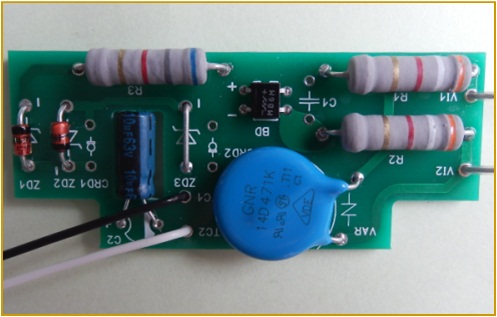

A PCB accessory for MCB, provided with leakage protection, over-voltage, and under-voltage protection. If leakage, overvoltage, or undervoltage occurs, the release will drive the MCB to open the circuit, protecting the person and device.
|
Type |
Name |
L*W |
Ue(V) |
I△n(mA) |
Uover(V) |
Uunder(V) |
|
GZ130A |
PCB with leakage and over-voltage protection |
33*61 |
230V |
30mA |
280±5% |
/ |
|
GZ130B |
PCB with leakage and under-voltage protection |
33*61 |
230V |
30mA |
/ |
170±7 |
|
GZ130C |
PCB with leakage, over- and under-voltage protection |
33*61 |
230V |
30mA |
280±5% |
170±7 |
Note: Customized designs available based on your requirements.
